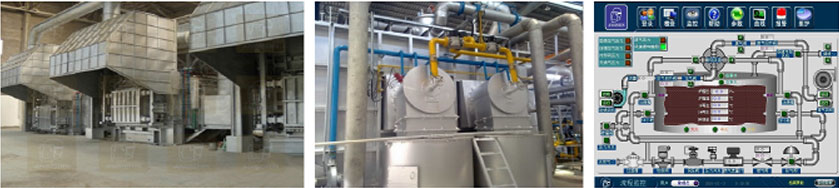

蓄熱式節能熔煉爐采用熱式燃燒系，助燃風機與廢氣風機及與兩套帶蓄熱功能的天燃?xì)鉄鞂崿F(xiàn)循環燃燒相互切換，天燃?xì)馀c助燃風，廢氣風采用比例閥自動調節控制，可自定義大小火焰調節控制，助燃風機與廢氣風機采用變頻控制，根據空燃比例調節實現最佳燃燒空燃比，使天然氣完全燃燒。爐內廢氣經蓄熱箱體中的氧化鋁球熱吸熱降溫后排放，排放溫度小于150℃，蓄熱球可將煙氣中殘留可燃物二次燃燒減少污染物和廢氣排放。

熔煉設備

聯系我們

產品詳細

產品參數

生產周期

　　產品參數

燃燒系統描述 Description of combustion system	報警提示功能 Alarm prompt function	控制系統描述 Control system description
蓄熱體尺寸:根據要求設計 Heat storage body size: designed as required	爐膛溫度超溫報警提示功能：有 Alarm function:：yes	電氣控制柜:600mm×1200mm×2100mm Electric control cabinet:600mm×1200mm×2100mm
蓄熱體重量:約4700kg Heat storage weight: about 4700kg	蓄熱箱體超溫報警提示功能：有 Heat storage box body over temperature alarm function：yes	觸摸屏顯示器 Touch screen display
燒嘴功率:300萬大卡 Burner power: 3 million calories	四通換向閥故障提示功能：有 Fault indication function of four-way reversing valve: yes	PLC控制器:德國西門子 PLC controller: Siemens, Germany
融化速度:根據要求設計 Melting rate: designed as required	氣動蝶閥換向故障提示功能：有 Pneumatic butterfly valve reversing fault indication function: yes	溫度模塊:德國西門子 Temperature module: Siemens, Germany
燃燒介質:天然氣 Combustion medium: natural gas	小槍火焰熄火提示功能:有 Small gun flame extinguishing function: yes	模擬量模塊輸入:德國西門子 Analog module input: Germany Siemens
氧化鋁規格:Φ25mm-30mm Alumina specifications: Greenwich 25mm-30mm	大槍火焰熄火提示功能:有 Big gun flame extinguishing prompt function: yes	模擬量模塊輸出:德國西門子 Analog module output: Germany Siemens
氧化鋁球重量:1000kg 氧化鋁球重量:1000kg	冷卻風機過載提示功能:有 Cooling fan overload indication function: yes	低壓電器:法國施耐德 Low voltage: schneider, France
火焰檢測：電離式 Flame detection: ionization type	助燃風機過載提示功能:有 Combustion fan overload indication function: yes	變頻器:日本三菱 Frequency converter: mitsubishi of Japan
點火方式：自動點火 Ignition mode: automatic ignition	廢氣風機過載提示功能:有 Exhaust fan overload indication function: yes	點火控制器 lgnition controller
燃燒時間：可設定修改 Burning time can be set and modified	爐門電機過載提示功能：有 Fumace door motor overload prompt function: yes	點火變壓器 Ignition transformer
切換方式：自動切換 Switching mode: automatic switching	壓縮空氣壓力低提示功能：有 Compressed air pressure low prompt function: yes	燃?xì)膺^濾器:霍尼韋爾 Gas filter: honeywell
蓄熱溫度：大于800℃ Heat storage temperature: greater than 800℃	冷卻風壓力低提示功能：有 Cooling air pressure low prompt function: yes	快速切斷閥:RQZ-80 Quick cut valve: rqz-80
排煙溫度：小于150℃ Exhaust temperature: less than 150℃	燃?xì)鈮毫Φ吞崾竟δ?有 Gas pressure low prompt function: yes	燃?xì)庹{(diào)壓閥:RTZ-80 Gas regulating valve: rtz-80
冷卻風機：380v2.2kw Cooling fan: 380v 2.2kw	爐膛壓力過高提示功能:有 Fumace pressure too high prompt function: yes	燃?xì)怆姶砰y:WAE-80 Gas electromagnetic valve: wae-80
助燃風機:380v-18.5kw Combustion fan: 380v-18.5kw	遠程遙控操作功能:有 Remote control operation function: yes	燃?xì)獗壤y:Lide-10-DN80 Gas proportional valve: Lide-10-DN80
廢氣風機：380v-22kw Exhaust fan: 380v-22kw	?	燃?xì)鈮毫z測:日本山武 Gas pressure test: yamaha, Japan
用電功率：50kw/h Power consumption: 50kw/h	?	爐壓檢測:SP101-4-20mA Fumace pressure test: SP101-4-20mA
燃?xì)饽芎?根據要求設計 Fuel gas consumption: designed as required	?	爐溫檢測:熱電偶測溫 Furnace temperature measurement: thermocouple temperature measurement
遠程操作：工業遙控器 Remote operation: industrial remote control	?	蓄熱箱溫度檢測:熱電偶測溫 Heat storage tank temperature detection: thermocouple temperature measurement
管道切換：四通換向閥 Pipeline switching: four-way reversing valve	?	燃?xì)饬髁坑?氣體羅茨流量計 Gas flowmeter: gas rotz flowmeter
管道控制：氣動蝶閥 Pipeline control: pneumatic butterfly valve	?	爐門控制:電機控制 Furnace door control: motor control
?	?	爐門提升:主鏈條+副鋼絲繩 Fumace door lift: main chain + auxiliary steel wire rope
?	?	?
